Mizuki Gakko

Sea Water

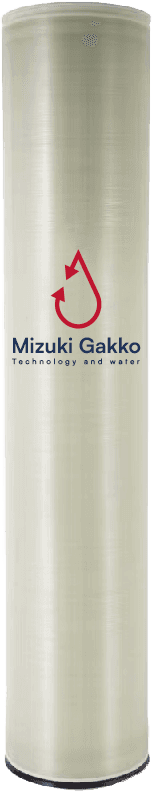

PRO SW Series (Sea Water)

Performance Specification

Property	SW MG 4040	SW MG 8040
Active Membrane	7.4 m²	41 m²
Average Permeate	1,950 gpd (7.4 m³/d)	7,480 gpd (28.3 m³/d)
Stable Rejection	99.7%	99.8%
Minimum Rejection	99.4%	99.3%
Spacer Mesh Thickness	28 thou (0.72 mm)	28 thou (0.72 mm)

Test Conditions: Test pressure 800 psi (55.1 bar), test solution concentration (NaCl) 32.000 ppm, Single Item Recovery Rate 8%, Test Solution Temperature 25°C, pH value of the Test Solution 8

Limits and operating conditions

SW MG 4040

Parameter	Value
Max. Feed Water Flow Rate	15 gpm (3.4 m³/h)
Max. Operating Pressure	1,200 psi (82.7 bar)
Max. Feed Water Temperature	40°C
Max. Feed Water SDI15	<3
Feed Water pH Range During Continuous Operation	2~11
Feed Water pH Range During Chemical Cleaning	2~13
Residual Chlorine Concentration in Feed Water	<0,1 ppm
Max. Pressure Drop of a Single Element	15 psi (1 bar)
Max. Turbidity (NTU)	1.0

SW MG 8040

Parameter	Value
Max. Feed Water Flow Rate	75 gpm (17 m³/h)
Max. Operating Pressure	1,200 psi (82.7 bar)
Max. Feed Water Temperature	40°C
Max. Feed Water SDI15	<3
Feed Water pH Range During Continuous Operation	2~11
Feed Water pH Range During Chemical Cleaning	2~13
Residual Chlorine Concentration in Feed Water	<0,1 ppm
Max. Pressure Drop of a Single Element	15 psi (1 bar)
Max. Turbidity (NTU)	1.0
