PAN UF/MBR Membranes

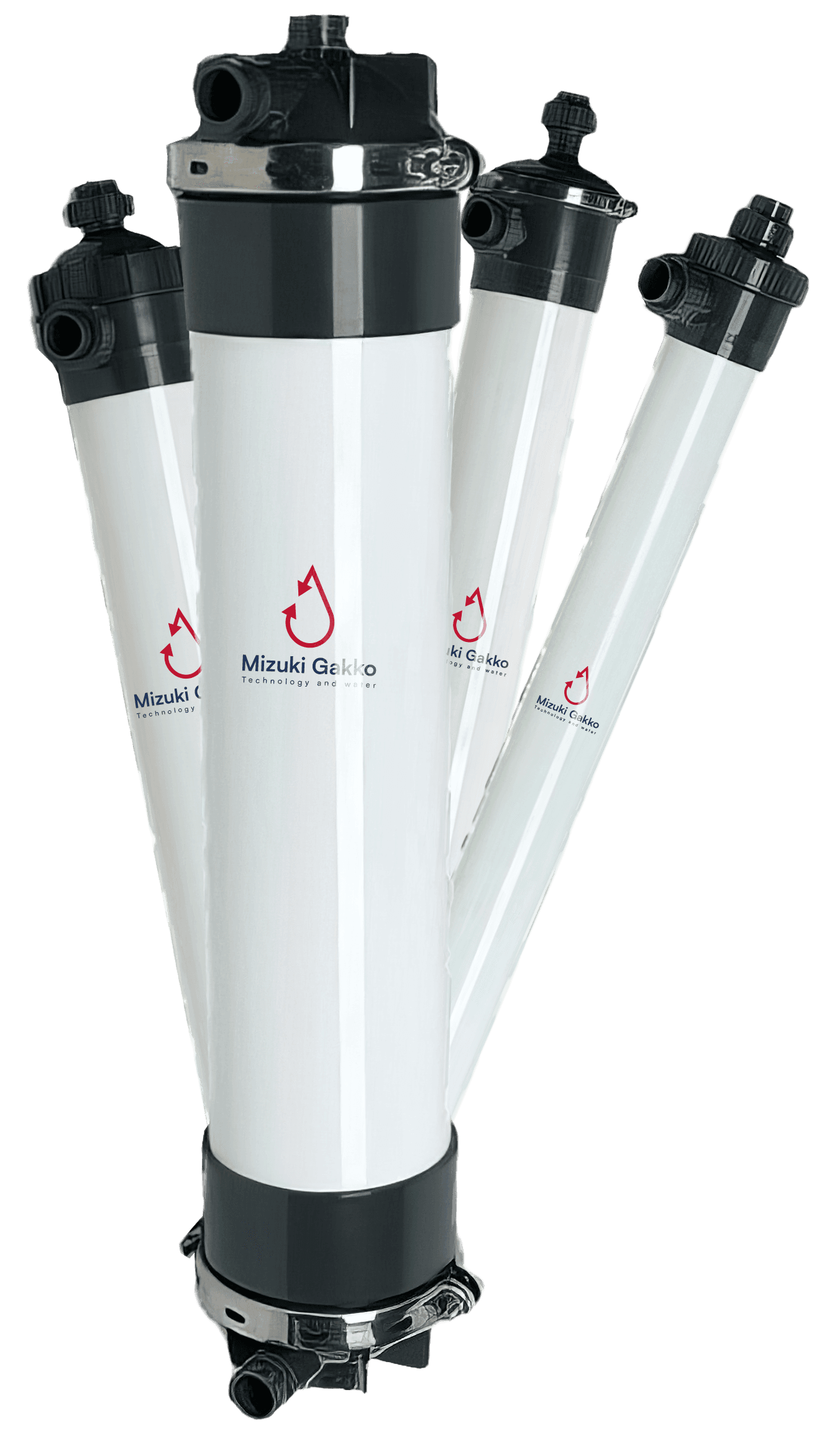

Mizuki Gakko’s PVDF (Polyvinylidene fluoride) hollow fiber UF membrane module offers one of the industry's highest levels of mechanical strength and chemical resistance (oxidation, pH), effectively removing suspended solids and microorganisms, including pathogens, for various water purification applications.
Mizuki Gakko’s PVDF (Polyvinylidene fluoride) hollow fiber UF membrane module offers one of the industry's highest levels of mechanical strength and chemical resistance (oxidation, pH), effectively removing suspended solids and microorganisms, including pathogens, for various water purification applications.
Mizuki Gakko’s PVDF (Polyvinylidene fluoride) hollow fiber UF membrane module offers one of the industry's highest levels of mechanical strength and chemical resistance (oxidation, pH), effectively removing suspended solids and microorganisms, including pathogens, for various water purification applications.
| Property | MUF 4046 | MUF 8040 |
|---|---|---|
| Type | Inside-out | Inside-out |
| Shell | PVC | PVC |
| Sealing Materials | Epoxy Resins | Epoxy Resins |
| Membrane Material | PAN/PVC | PAN/PVC |
| Molecular Weight Cut-Off (Dalton) | 50,000 | 50,000 |
| Size (mm) | 90x1016 | 90x1155 |
| Effective Membrane Area | 4㎡ | 4.8㎡ |
| Hollow Fiber ID/OD | 1.0 mm / 1.6 mm | 1.0 mm / 1.6 mm |
| Maximum Operating Pressure | 0.3 MPa | 0.3 MPa |
| Recommended Operating Pressure | ≤0.2 MPa | ≤0.2 MPa |
| Maximum Transmembrane Pressure | ≤0.2 MPa | ≤0.2 MPa |
| Backwash Pressure | 0.05-0.1 MPa | 0.05-0.1 MPa |
| SDI25 (Water Fouling Index) | ≤3 | ≤3 |
| Initial Flow Rate | 0.8 m³/h | 1 m³/h |
| Design Flow Rate | 40-150 L/㎡/h | 40-150 L/㎡/h |
| Operating Mode | Cross-flow or dead-end | Cross-flow or dead-end |
| Bacteria Removal Rate | ≥4 log | ≥4 log |
| Permeate Turbidity | ≤0.1 NTU | ≤0.1 NTU |
| Operating Temperature | 5-40°C | 5-40°C |
| pH Range | 2-10 | 2-10 |
